| Specification | Details |
|---|---|
| UV Technology | Low-pressure UV, typically around 254 nm |
| Lamp Life | 16,000 hours |
| Recommended Flow Rate | At UV dose 60 mJ/cm² |
| Salt Water Resistance | Salt concentration up to 5 kg/m³ |
| Connection Size | 50 / 63 mm |
| Maximum Pressure | 4 bar |
| Total Power | 48 – 522 W |
| Power Supply | Advanced Electronic Ballast, 100–240 V / 50–60 Hz |
| Construction | Stainless-steel reactor 316L |

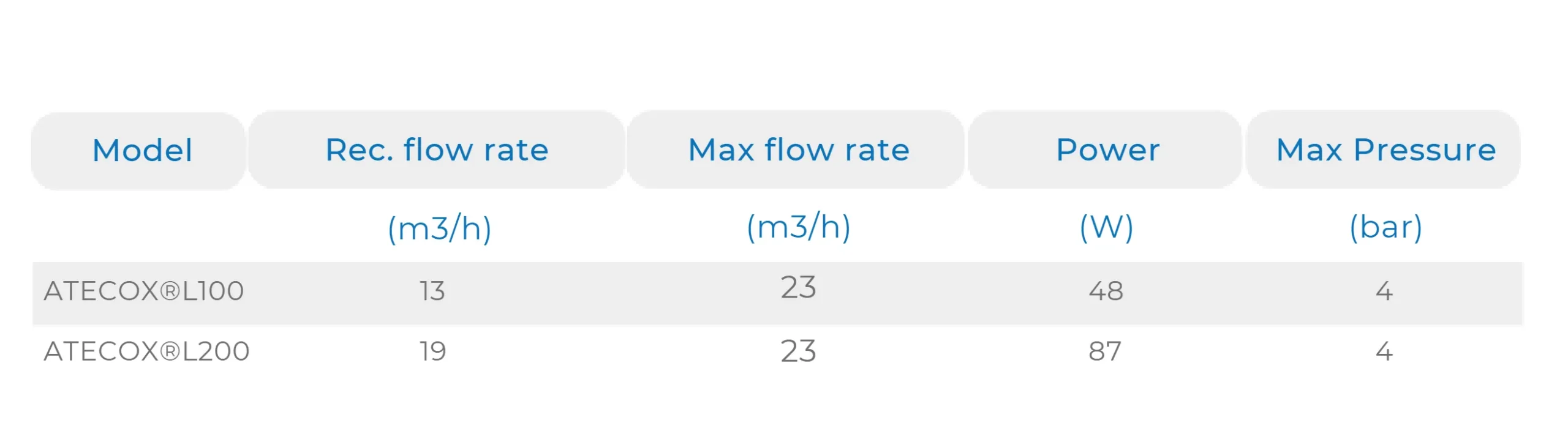

| Model | Recommended Flow Rate (m³/h) | Max Flow Rate (m³/h) | Power (W) | Max Pressure (bar) |
|---|---|---|---|---|

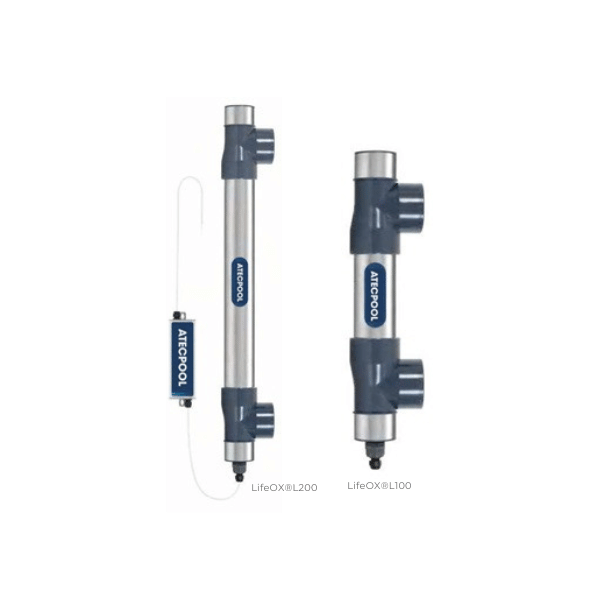

| ATECOX®L100 | 13 | 23 | 48 | 4 |

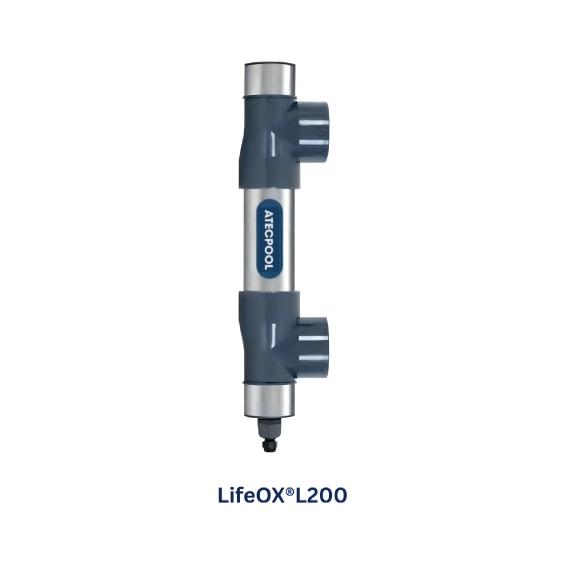

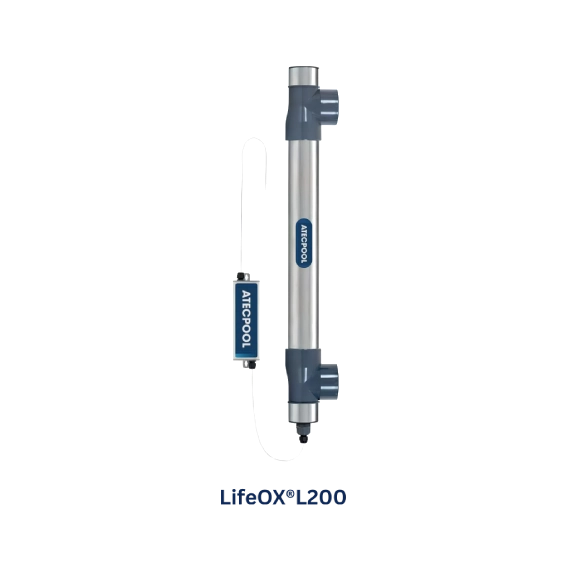

| ATECOX®L200 | 19 | 23 | 87 | 4 |
| Model | Connection | Recommended Flow Rate @ 60 mJ/cm² (m³/h) | Max Flow Rate @ 30 mJ/cm² (m³/h) | Lamp Power |
|---|---|---|---|---|
| ATECUVC0148-16-NW-G2 | 2" | 3 | 6 | 48 W |
| ATECUVC0187-16-NW-G3 | 3" | 6.5 | 13 | 87 W |
| ATECUVC0287-16-NW-G3 | 3" | 13 | 26 | 2 × 87 W |
| ATECUVC0387-16-NW-G3 | 3" | 20 | 40 | 3 × 87 W |
| ATECUVC0387-20-NW-DN100 | DN100 | 25 | 50 | 3 × 87 W |
| ATECUVC0487-20-NW-DN125 | DN125 | 34 | 68 | 4 × 87 W |
| ATECUVC0587-20-NW-DN125 | DN125 | 42 | 84 | 5 × 87 W |
| ATECUVC0687-20-NW-DN150 | DN150 | 50 | 100 | 6 × 87 W |
| ATECUVC0687-27-NW-DN150 | DN150 | 66 | 132 | 6 × 87 W |
