Specifications
- Multilanguage interface
- pH Range- Range 0.00 … 14.00 pH; input impedance > 10^12 Ohm
- pH Range- Range 0.00 … 14.00 pH; input impedance > 10^12 Ohm
- FLOW input to monitor the water flow to the sensors
- EXT.CONS. input for external consent signal
- Two LEV (level) inputs for controlling the level of reagents to be dosed
- Configurable maintenance schedule
- Alarms and errors (diagnostic) directly shown on display
- Configuration and calibration data stored in the no volatile memory for at least 10 years

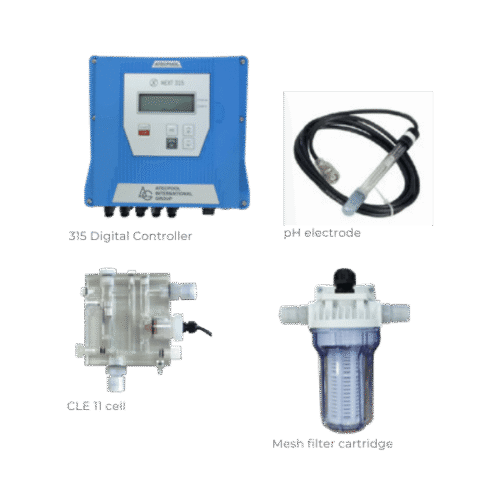

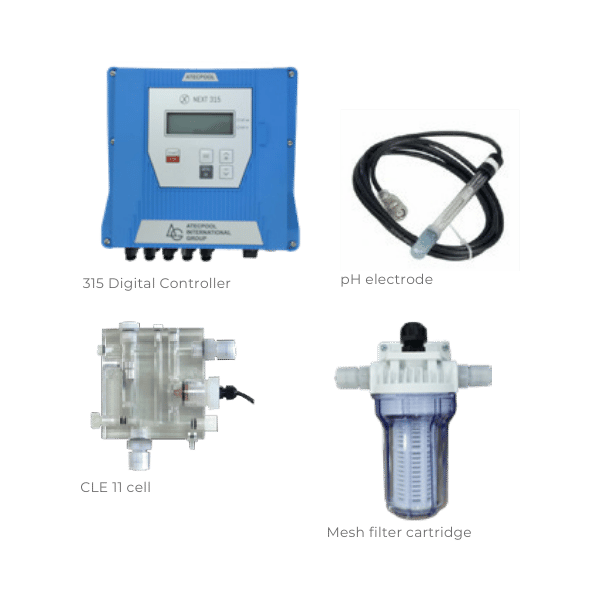

Components Included
- 315 digital controller – 315 digital controller is an pH electrode electronic unit especially designed for the analysis and control of the main parameters in pool plants.
- CLE11 cell – Open amperometric cells for measurements of free chlorine, chlorine dioxide and bromine
- pH electrode – EURO2000®–pH Series. Models with plastic shaft and fixed cable
- Mesh filter cartridge – 1x SF17 flow through electro

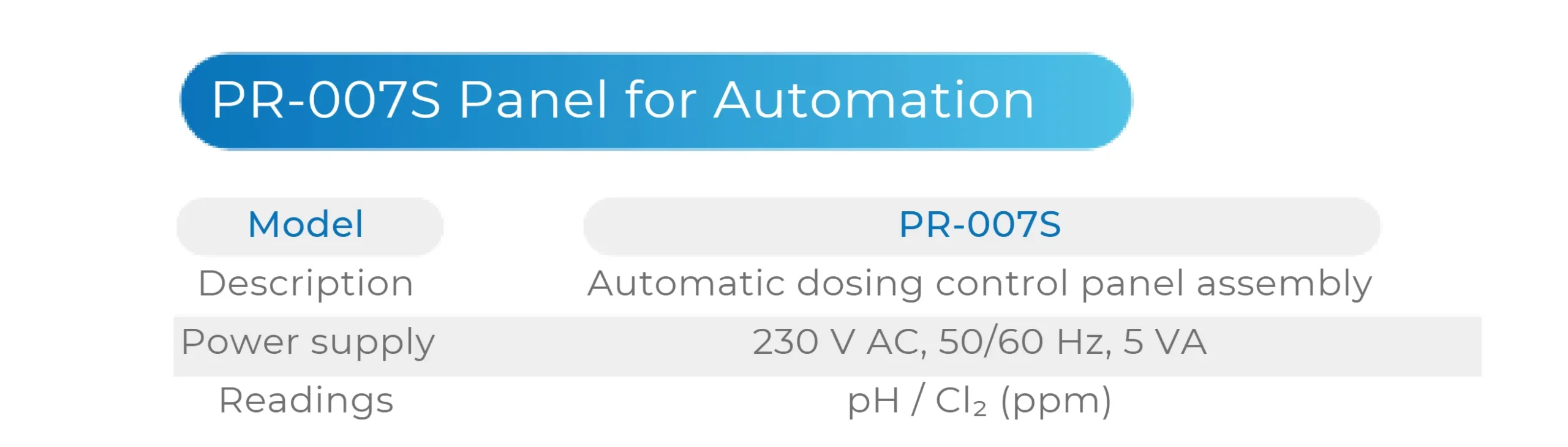

| Specification | Details |
|---|---|
| Model | PR-007S |

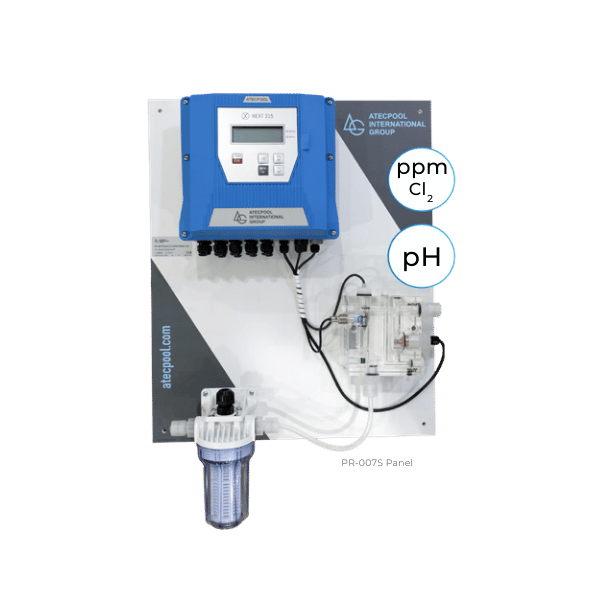

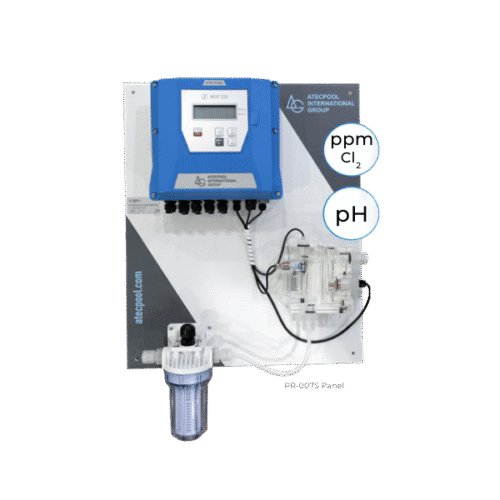

| Description | Automatic dosing control panel assembly |
| Power Supply | 230 V AC, 50/60 Hz, 5 VA |
| Readings | pH / Cl₂ (ppm) |
| pH Range | 0.00–14.00 pH |
| pH Input Impedance | > 10¹² Ohm |
| Cl₂ Range | 0–10.00 ppm Cl₂ |
| Chlorine Measurement | CLE11 amperometric cell |
| Dosing Pump Outputs | On-Off 230 V / 115 V or PFM pulse signal |
| Relay Outputs | 2 |
| 4–20 mA Outputs | 2 |
| Digital Output | 1, suitable for water meter impulses |
| Flow Input | Monitors water flow to the sensors |
| External Consent Input | EXT.CONS. |
| Level Inputs | 2 LEV inputs for reagent level control |
| Communication | Optional RS232C serial port |
| Interface | Multilanguage |
| Safety | “Pump Stop” safety system |
| Data Storage | Configuration and calibration data retained for at least 10 years |
