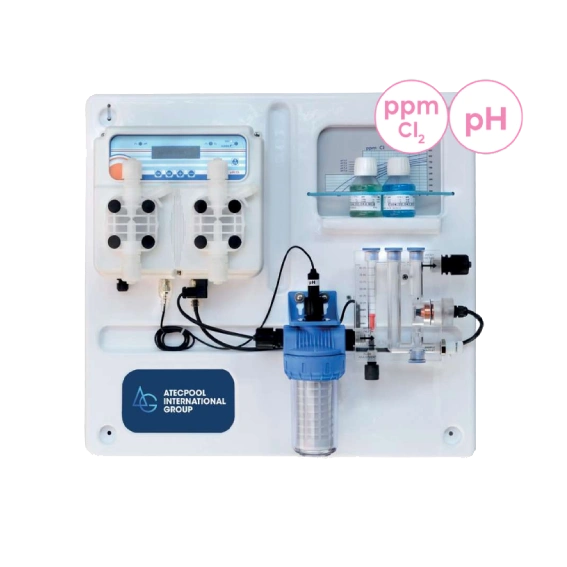

Atecpool PR-009 Panel (CLC2 Amperometric CL Cell)

New

Automatic Chemical Regulation and Control Specifications

Dual Dosing Panel PH/Chlorine dosing system with built in controller with PPM display
3 operating modes: constant, ON / OFF, proportional
Electronic dosing control
Probe holder panel with pre-filter, inductive low detector and flow regulator.
Cl (ppm) monitoring by CLC2 amperometric CL cell (PR-009 Panel) and by CLE11 amperometric cell with Cu electrode (PR-009S Panel).
PR-009S is Wi-Fi enabled

Category: Water Treatment

Tags: Atecpool PR-009 Series/Integrated Panels with Inbuilt Dosing Pumps

Brand: Atecpool

Description

Specification	PR-009
Panel Type	CLC2 Amperometric CL Cell
Input Voltage	230 V AC, 50/60 Hz
Pump Head	PVDF
Readings	pH / Cl₂ (ppm)
Cl₂ Range	0.20–10.0 ppm
pH Range	0–14 pH
Pressure	5 bar
Flow Rate	5 L/h
Cl Electrode	Copper / Platinum
Temperature	5–40°C
Dimensions	H: 500 × W: 550 × D: 147.6 mm
