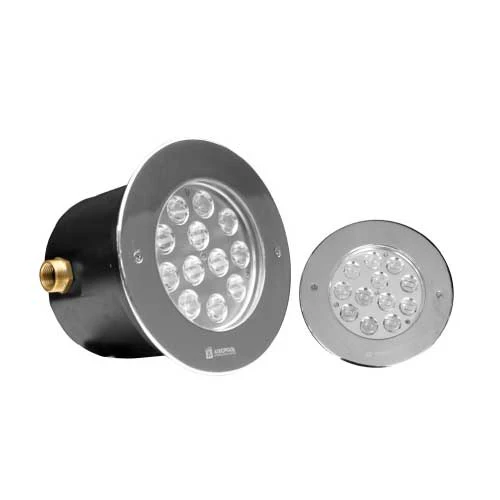

Specifications
- Made of Stainless Steel AISI 316
- Gasket made in EPDM
- Tempered Glass T=9 mm
- Reflector: Optical lens, efficiency ≥85%
- Cable gland: IP-68 PG-11 copper with nickel-coated
- Single or RGB (3 in 1) LED
- Mounting sleeve in PVC
- PCB: Excellent heat conductivity aluminium, coefficient of heat, Conductivity ≥ 2.0w /mk. Constant current output.
- Water temperature -20°C to 40°C less than one meter depth
- Power cable: H05RN-F 2 X 0.75 mm2 L = 2 m (12VAC low voltage). H05RN-F 4 x 0.75 mm2 L = 2 m (RGB type)
- DMX / DALI controls compatible Vitrage series upon request
| Code | Description | Voltage | Power | Beam Angle | Lumen (lm) | Color Temperature |
|---|---|---|---|---|---|---|
| ATZ1811CW | Vitrage 12 LED Cool White | 12V AC/DC | 12×3 W | 30° Symmetrical | 3300 | Cool White 6500K |
| ATZ1811WW | Vitrage 12 LED Warm White | 12V AC/DC | 12×3 W | 30° Symmetrical | 2600 | Warm White 3000K |
| ATZ1811 B | Vitrage 12 LED Blue | 12V AC/DC | 12×3 W | 30° Symmetrical | 790 | Single Blue |
| ATZ1811 RGB | Vitrage 12 LED Full RGB | 12~24V DC | 12×3 W | 30° Symmetrical | 1750 | RGB 14 Modes |
| ATZ1811 RGBW | Vitrage 12 LED RGBW | 12~24V DC | 12×3 W | 30° Symmetrical | 2600 | RGB 14 Modes/W 3000K |
| Code | Description | Voltage | Power | Beam Angle | Lumen (lm) | Color Temperature |
|---|---|---|---|---|---|---|
| ATZ1805 CW | Vitrage 12 LED Cool White | 12V AC/DC | 12×3 W | 45° Asymmetrical | 3305 | Cool White 6500K |
| ATZ1805 WW | Vitrage 12 LED Warm White | 12V AC/DC | 12×3 W | 45° Asymmetrical | 2604 | Warm White 3000K |
| ATZ1805 B | Vitrage 12 LED Blue | 12V AC/DC | 12×3 W | 45° Asymmetrical | 794 | Single Blue |
| ATZ1805 RGB | Vitrage 12 LED Full RGB | 12~24V DC | 12×3 W | 45° Asymmetrical | 1755 | RGB 14 Modes |
| ATZ1805 RGBW | Vitrage 12 LED RGBW | 12~24V DC | 12×3 W | 45° Asymmetrical | 2604 | RGB 14 Modes/W 3000K |
