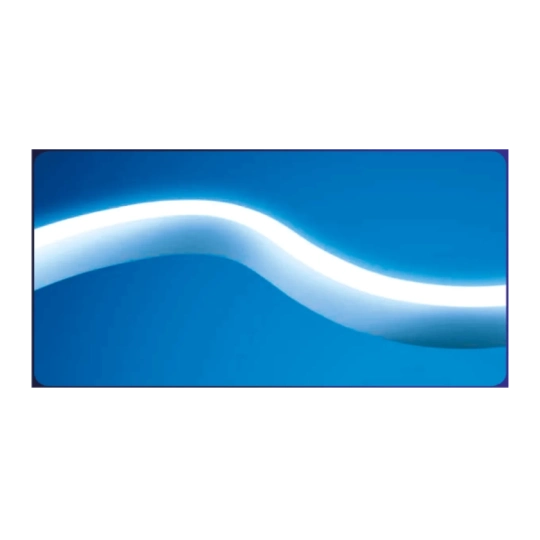

Curve Linear LED Strip IP68

Curve Linear LED Strip IP68

New

CURVE LINEAR
Atecpool LED Linear Lighting Curve Linear, 21 x 11.5 mm, is a high-quality, flexible LED strip, with a 11.5 mm illuminated side. Current regulator via integrated circuit. Generated heat is dissipated due to thermally conductive coating. Fully waterproof IP68 end connection for strip LED by molded Injection connector with a unique co-extrusion technology. Lead-free, RoHS compliant.

Category: Pool Lighting

Brand: Atecpool

Description

Specification	Curve Linear LED Neon Strip	Curve Linear LED Neon Strip RGB	Curve Linear RGB Multicolor Strip
Code	ATL08	ATL08 RGB	ATL08 RGBW
Type of Light	SMD5050	SMD5050	SMD5050 Tri-chip
Colour Temperature / Selection	6500K / 5000K / 3000K / 2700K / Blue / Red / Green	RGB	RGBW (W: 2200K / 3000K / 4000K)
Material Used	ECO PVC	ECO PVC	ECO PVC
Operating Voltage	24V DC	24V DC	24V DC
Power Consumption	12W / m	12W / m	17W / m
Lumen (lm)	320 lm	220 lm	220 lm
LED Quantity / m	60 pcs	60 pcs	60 pcs
Min Cutting Length	10 cm	10 cm	10 cm
Max Length	20 m	10 m	8 m
Protection Rating	IP68	IP68	IP68
Maximum Bending	Diameter 8 cm	Diameter 8 cm	Diameter 8 cm
Bending Direction	Horizontally	Horizontally	Horizontally
Ambient Temp.	-30°C to +45°C	-30°C to +45°C	-30°C to +45°C
Controller	24V DC Power Supply	24V DC Power Supply	PWM Controller

Download Catalogue

Download Manual

Download Warranty Letter

Mounting Channels
ATLA015: Aluminium mounting channel 1m
Dimensions: 15.1~11.09×24.4 mm (WxH)
ATLA015-SS : Stainless steel 304 mounting channel 1m
Dimensions: 14.8~11×26 mm (WxH)
