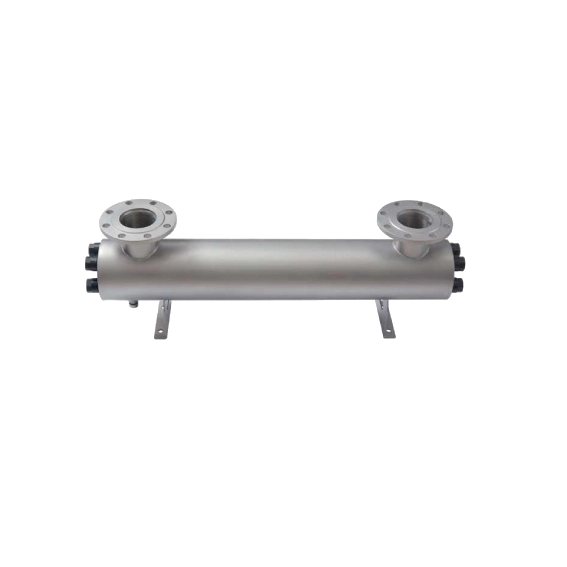

Stainless Steel UV – Low Pressure Reactors

Technical Detail	Specification
UV Chamber Material	SS316L
Ballasts	Electronic ballast
Wiper – Standard Supply	No wiper
Wiper – Optional	Automatic wiper driven by compressed air / Manual wiper
Rated Lamp Life	9,000–12,000 hours
Operating Pressure	7 bar maximum, positive pressure only

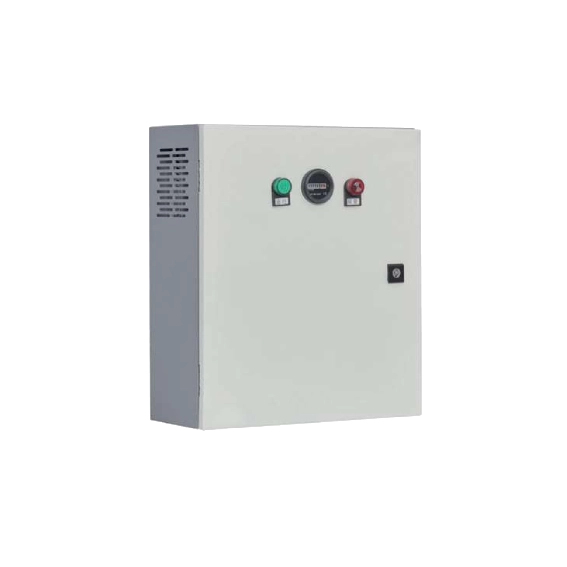

Control Cabinet	Accumulated operation hours, flashing buzzer for lamp fault, lamp status indicator

Model	Flow Rate @ 40 mJ/cm² (m³/h)	Voltage	Lamp Power	Flange	L1 (mm)	L2 (mm)	D (mm)	W (mm)	H (mm)
ATECUVL-40-2	8	220V	40W × 2	DN40	740	615	960	145	242
ATECUVL-40-3	14	220V	40W × 3	DN50	720	615	960	159	319
ATECUVL-40-4	18	220V	40W × 4	DN65	720	615	960	159	319
ATECUVL-80-2	15	220V	80W × 2	DN50	700	615	960	180	242
ATECUVL-80-3	22	220V	80W × 3	DN65	690	615	960	195	329
ATECUVL-80-4	30	220V	80W × 4	DN80	690	615	960	195	329
ATECUVL-80-5	40	220V	80W × 5	DN80	690	615	960	195	329
ATECUVL-80-6	45	220V	80W × 6	DN80	690	615	960	219	399
ATECUVL-120-4	45	220V	120W × 4	DN80	950	615	1240	195	329
ATECUVL-120-5	53	220V	120W × 5	DN100	930	615	1240	219	419
ATECUVL-120-6	70	220V	120W × 6	DN100	930	615	1240	219	419
ATECUVL-120-7	82	220V	120W × 7	DN100	930	615	1240	219	419
ATECUVL-120-8	100	220V	120W × 8	DN150	860	615	1240	280	419
ATECUVL-120-9	116	220V	120W × 9	DN150	860	615	1240	280	473
ATECUVL-320-4	140	220V	320W × 4	DN150	1300	900	1660	280	419
ATECUVL-320-5	180	220V	320W × 5	DN150	1300	900	1660	280	419
ATECUVL-320-6	260	220V	320W × 6	DN150	1300	900	1660	280	473
ATECUVL-320-7	310	220V	320W × 7	DN200	1240	900	1660	340	493
ATECUVL-320-8	360	220V	320W × 8	DN200	1240	900	1660	340	493
ATECUVL-320-9	435	220V	320W × 9	DN200	1240	900	1660	340	565
ATECUVL-320-10	480	220V	320W × 10	DN200	1240	900	1660	340	565
ATECUVL-320-11	530	220V	320W × 11	DN250	1200	900	1660	390	580
ATECUVL-320-12	580	380V	320W × 12	DN250	1200	900	1660	390	580
ATECUVL-320-15	720	380V	320W × 15	DN250	1200	900	1660	406	691
ATECUVL-320-18	900	380V	320W × 18	DN300	1160	900	1660	440	691
ATECUVL-320-21	1160	380V	320W × 21	DN300	1160	900	1660	500	661
