Automatic Heat Exchanger 46/84 kW in plastic-S.S/Titanium

New

Automatic Heat Exchanger 46/84 kW in plastic-S.S/Titanium

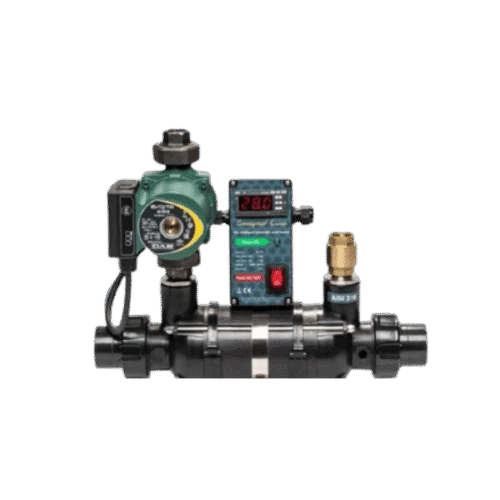

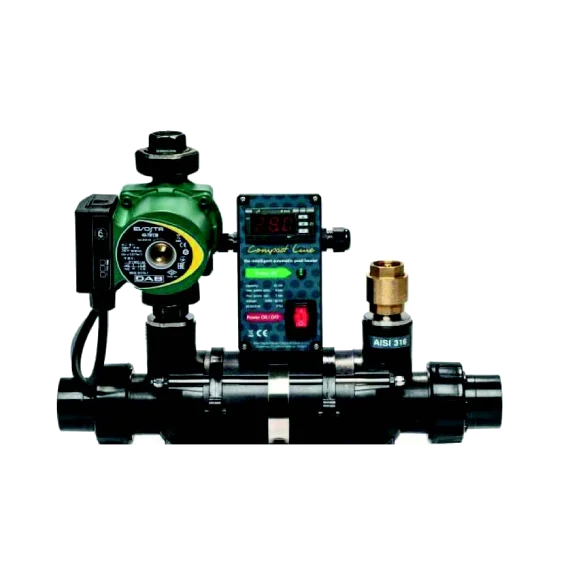

Compact Heat Exchanger in stainless steel or titanium corrugated tube, completely wired and equipped with a circulation pump (three step for the primary circuit), nonreturn valve, on-off button, LED – control lamp and digital electric temperature regulation (adjustable from 0 – 42°C, with display of the actual temperature, adjustable bathing water temperature, and temperature difference which is factory-set at 0,5° C). Included is also a pair of plastic clamps to mount the device to the wall or on the ground.

Category: Pool Heating

Tags: Compact Line Heat Exchanger/Pool Heating

Brand: Atecpool

Description

Code	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
CL-45kW- AISI Compact	415	Ø110	205	345	50
CL-85kW- AISI Compact	705	Ø110	495	345	50
CL-45kW- Ti Compact	415	Ø110	205	345	50
CL-85kW- Ti Compact	705	Ø110	495	345	50

Description	CL45 (AISI/Ti)	CL85 (AISI/Ti)
Heat Capacity	46 kW	84 kW
Heat Capacity	39,560 kcal/h	72,240 kcal/h
Temperature Difference	70°C = 0.66 kW/°C	70°C = 1.2 kW/°C
Exchange Area	0.15 m²	0.33 m²
Primary Flow	2 m³/h	1.8 m³/h
Secondary Flow	10 m³/h	12 m³/h
Pressure Loss Primary	0.15 bar	0.25 bar
Pressure Loss Secondary	0.15 bar	0.22 bar
Max. Pressure Primary	6 bar	6 bar
Max. Pressure Secondary	2 bar	2 bar
Material Shell	PA66/PP-30% FG	PA66/PP-30% FG
Material Corrugated Tube	AISI 316 / Titanium	AISI 316 / Titanium
Voltage	230 V / 50 Hz	230 V / 50 Hz
Power Consumption of Pump	0.34 A	0.34 A
IP Rating	IP54	IP54
