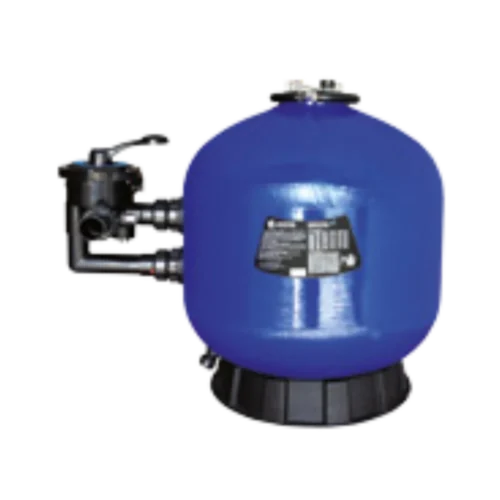

- Bobbin-wound fiberglass reinforced tank with
- UV-resistant surface finish
- The transparent lid is designed for easy inspection of the sand bed
- Supplied with a pressure gauge, manual air vent, water purge, and multiport valve
- Maximum working pressure: 2,5 kg/cm²
- Testing Pressure: 4 kg/cm²
- Max temperature of 50°C
- Universal standard of union connection provided
- Suggested size of media: 0.5-0.8 mm
- Equipped with a side multiport valve with 6-way functions
- Maximum Filtration Velocity: 50 m3/hr/m².
- ABS laterals
- Filters with 4Kg/cm² working pressure can be made on request
- Automatic air release valve available upon request
Maximum filtration velocity: 50 m3/h/m2 – Maximum working pressure: 2,5 kg/cm2 – Testing Pressure: 4 kg/cm2.
