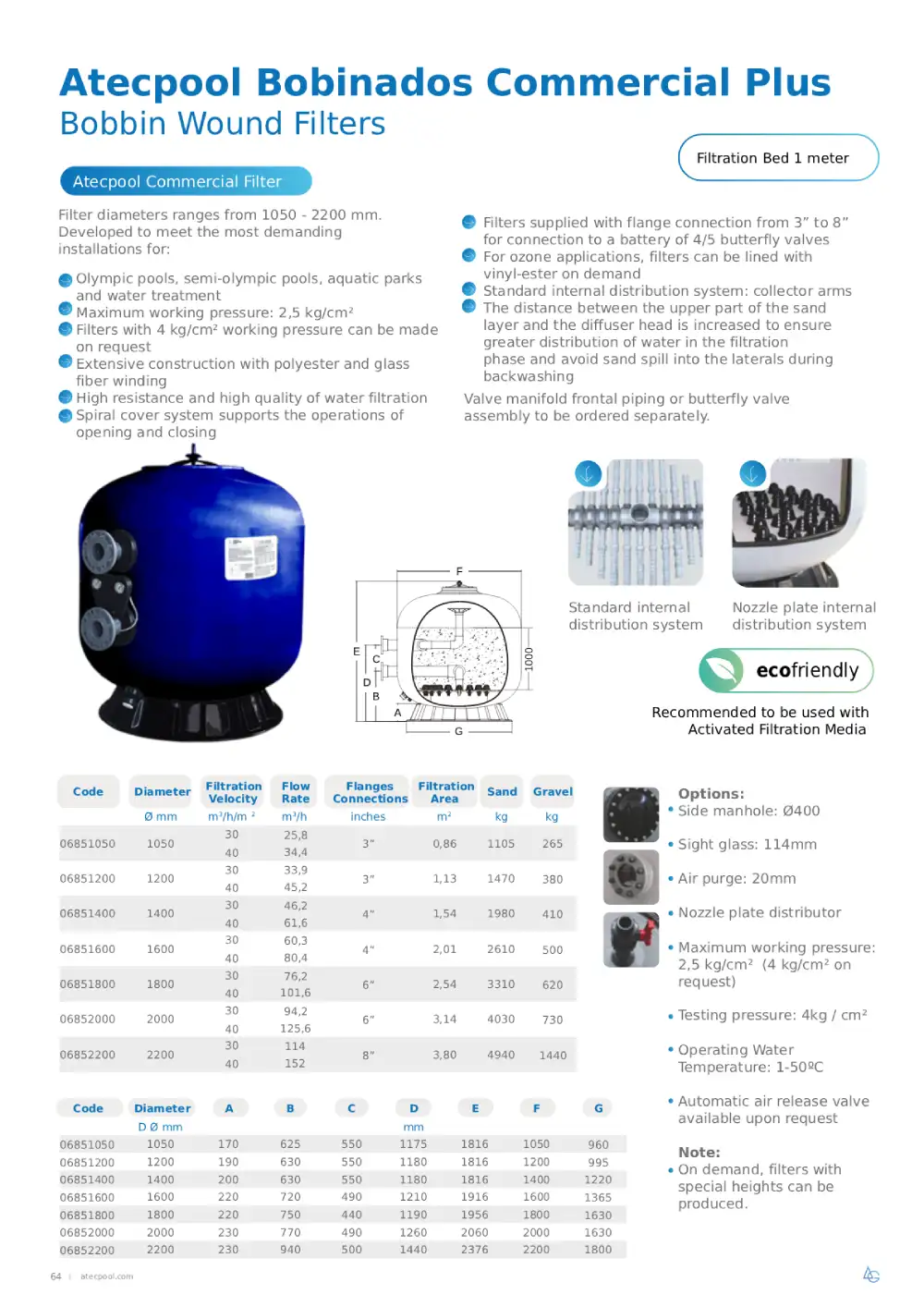

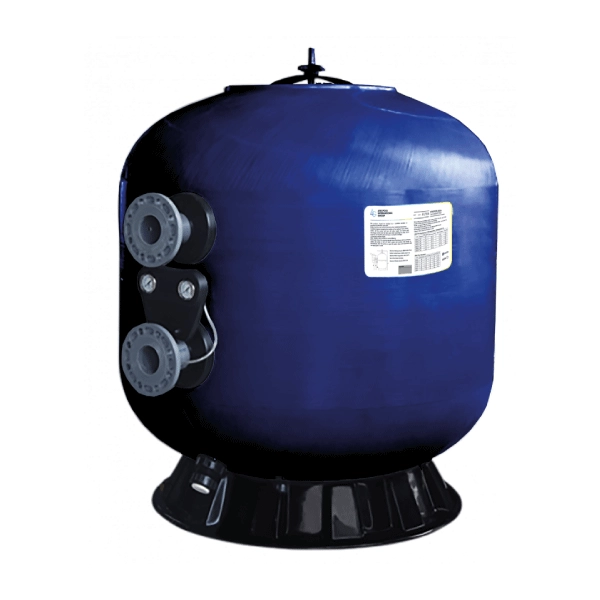

Atecpool Bobinados Commercial Plus Bobbin Wound Filters

Atecpool Bobinados Commercial Plus Bobbin Wound Filters
New

Commercial Filter

Eco-friendly | Recommended to be used with Activated Filtration Media

Filter diameters range from 1050 – 2200 mm. Developed to meet the most demanding installations for:

  • Olympic pools, semi-Olympic pools, aquatic parks, and water treatment
  • Maximum working pressure: 2,5 kg/cm2
  • Filters with 4 kg/cm2 working pressure can be made on request
  • Extensive construction with polyester and glass fiber winding
  • High resistance and high quality of water filtration
  • Spiral cover system supports the operations of opening and closing

Category:
Tag:
Brand:
  • Filters supplied with flange connection from 3” to 8” for connection to a battery of 4/5 butterfly valves
  • For ozone applications, filters can be lined with vinyl-ester on demand
  • Standard internal distribution system: collector arms
  • The distance between the upper part of the sand layer and the diffuser head is increased to ensure greater distribution of water in the filtration phase and avoid sand spill into the laterals during backwashing

Technical Specification

Code Diameter Ø (mm) Filtration Velocity (m³/h/m²) Flow Rate (m³/h) Flange Connection Filtration Area (m²) Sand (kg) Gravel (kg)
06851050 1050 30 25.8 3″ 0.86 1105 265
06851050 1050 40 34.4
06851200 1200 30 33.9 3″ 1.13 1470 380
06851200 1200 40 45.2
06851400 1400 30 46.2 4″ 1.54 1980 410
06851400 1400 40 61.6
06851600 1600 30 60.3 4″ 2.01 2610 500
06851600 1600 40 80.4
06851800 1800 30 76.2 6″ 2.54 3310 620
06851800 1800 40 101.6
06852000 2000 30 94.2 6″ 3.14 4030 730
06852000 2000 40 125.6
06852200 2200 30 114 8″ 3.80 4940 1440
06852200 2200 40 152


Product Dimensions

Model Diameter Ø (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm)
06851050 1050 170 625 550 1175 1816 1050 960
06851200 1200 190 630 550 1180 1816 1200 995
06851400 1400 200 630 550 1180 1816 1400 1220
06851600 1600 220 720 490 1210 1916 1600 1365
06851800 1800 220 750 440 1190 1956 1800 1630
06852000 2000 230 770 490 1260 2060 2000 1630
06852200 2200 230 940 500 1440 2376 2200 1800


Standard & Optional Features:
Filtration Bed
1 metre filtration bed for commercial pool filtration.
Side Manhole
Optional Ø400 mm side manhole.
Sight Glass
Optional 114 mm sight glass.
Distribution System
Standard collector-arm distribution system with optional
nozzle-plate distributor.
Working Pressure
Standard maximum working pressure of 2.5 kg/cm².
A 4 kg/cm² version is available on request.
Automatic Air Release
Automatic air-release valve available upon request.
Ozone Applications
Vinyl-ester lining can be supplied on demand for ozone
applications.
Valve Manifold
Frontal valve-manifold piping or butterfly-valve assembly must be ordered separately.
Filters with special heights can be produced on demand.
Air purge connection: 20 mm.
