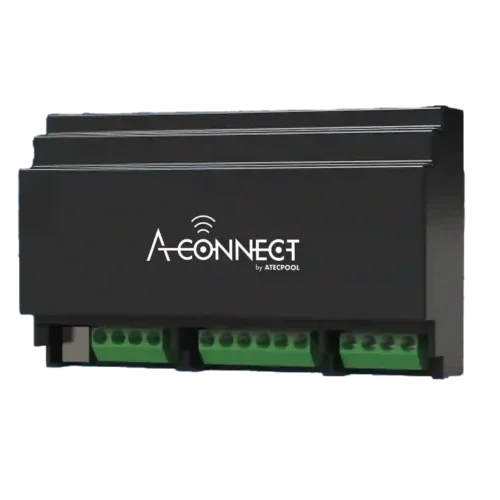

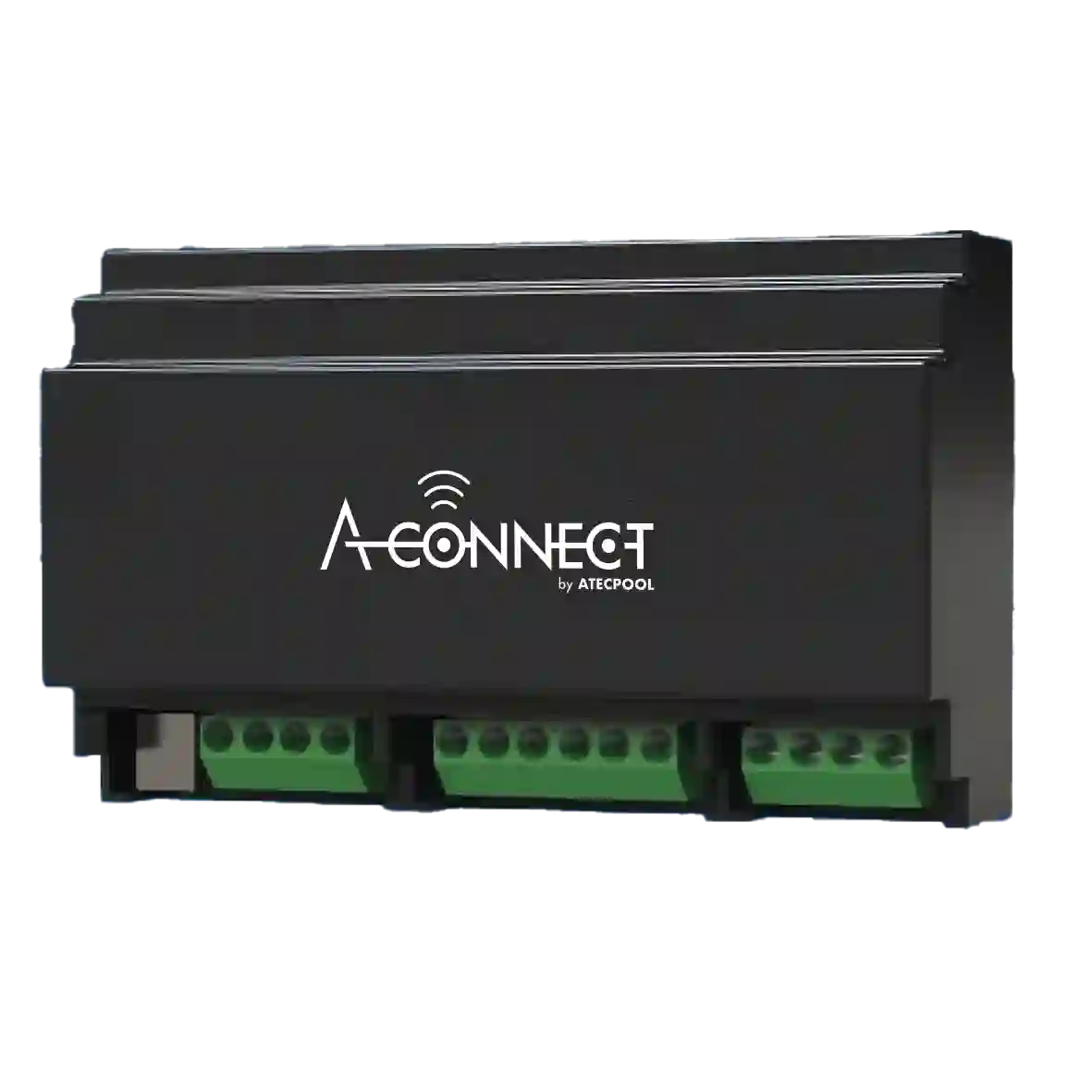

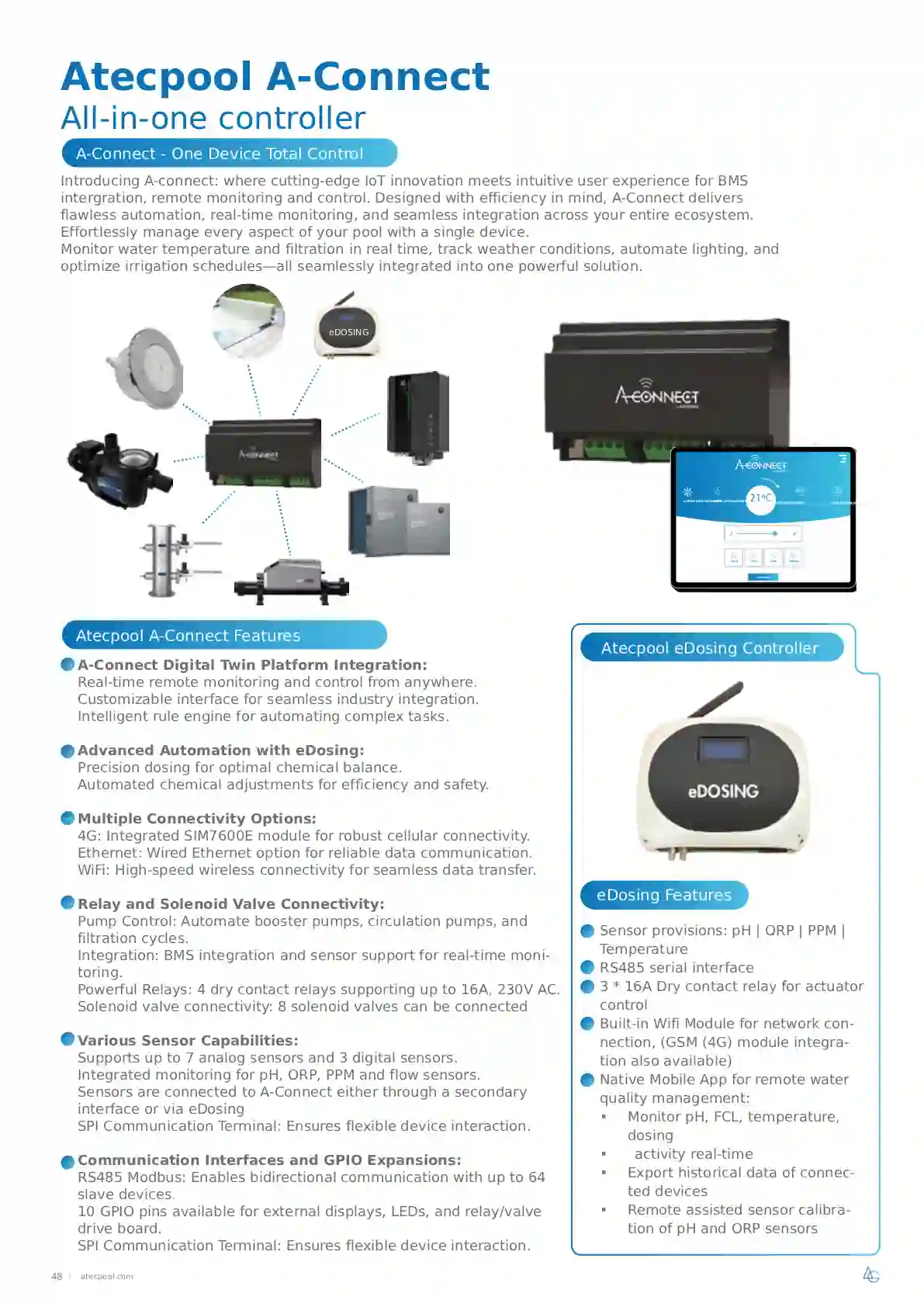

Atecpool A Connect

Atecpool A-Connect Features

A-Connect Digital Twin Platform Integration:
Real-time remote monitoring and control from anywhere. Customizable interface for seamless industry integration. Intelligent rule engine for automating complex tasks.
Advanced Automation with eDosing:
Precision dosing for optimal chemical balance. Automated chemical adjustments for efficiency and safety.
Multiple Connectivity Options: 4G: Integrated SIM7600E module for robust cellular connectivity. Ethernet: Wired Ethernet option for reliable data communication. WiFi: High-speed wireless connectivity for seamless data transfer.
Relay and Solenoid Valve Connectivity:Pump Control: Automate booster pumps, circulation pumps, and
filtration cycles. Integration: BMS integration and sensor support for real-time monitoring. Powerful Relays: 4 dry contact relays supporting up to 16A, 230V AC. Solenoid valve connectivity: 8 solenoid valves can be connected
Various Sensor Capabilities: Supports up to 7 analog sensors and 3 digital sensors. Integrated monitoring for pH, ORP, PPM and flow sensors. Sensors are connected to A-Connect either through a secondary
interface or via eDosing SPI Communication Terminal: Ensures flexible device interaction.
Communication Interfaces and GPIO Expansions: RS485 Modbus: Enables bidirectional communication with up to 64 slave devices. 10 GPIO pins available for external displays, LEDs, and relay/valve drive board. SPI Communication Terminal: Ensures flexible device interaction.

Atecpool eDosing Controller

Sensor provisions: pH | ORP | PPM | Temperature
RS485 serial interface
3 * 16A Dry contact relay for actuator control
Built-in Wifi Module for network connection, (GSM (4G) module integration also available)
Native Mobile App for remote water quality management:
• Monitor pH, FCL, temperature, dosing
• activity real-time
• Export historical data of connected devices
• Remote-assisted sensor calibration of pH and ORP sensors
