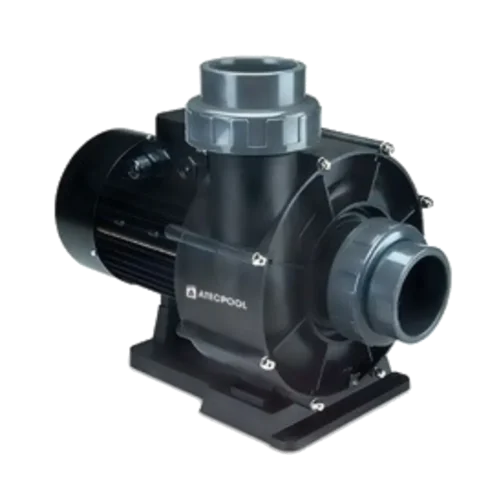

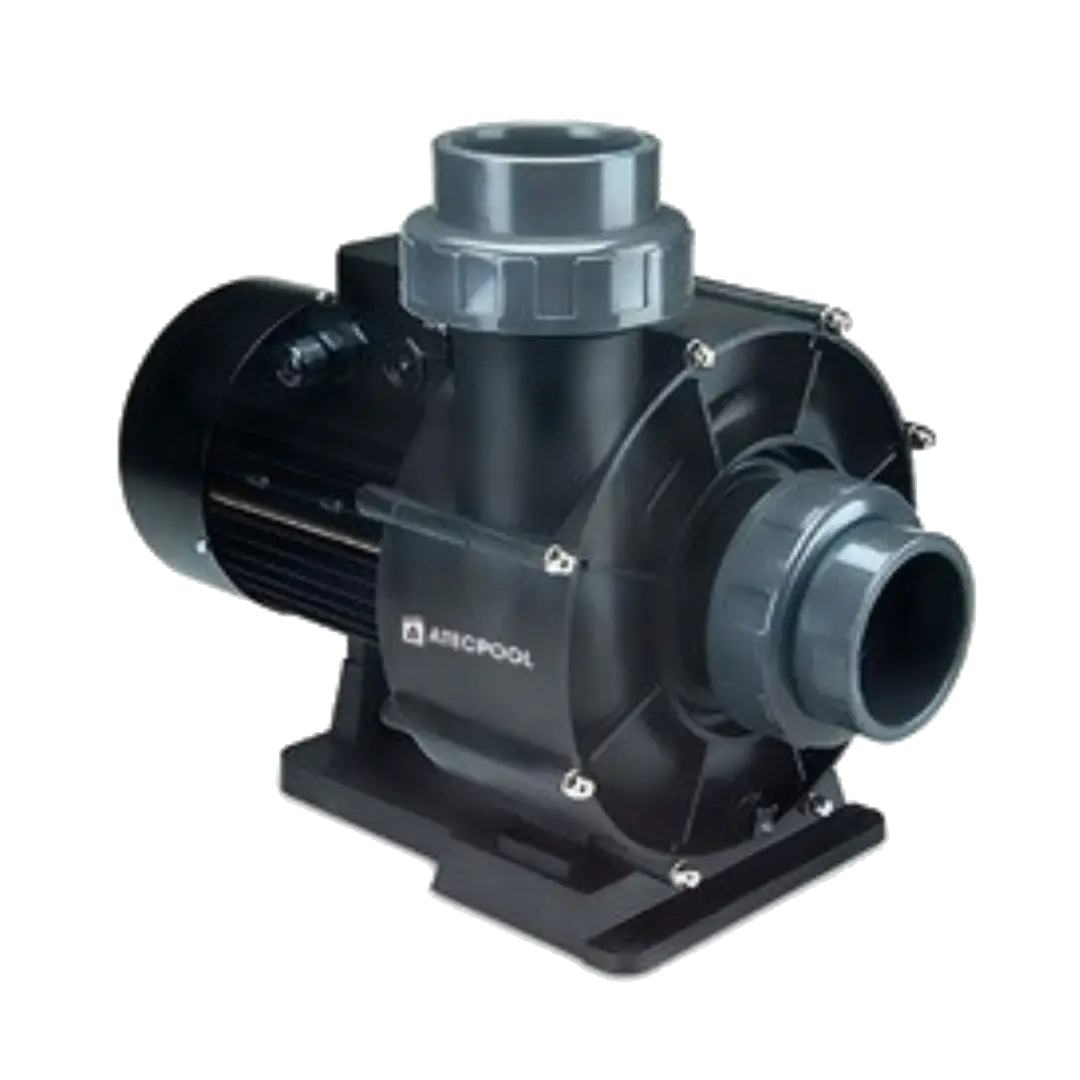

Atecpool Counter Current Pump

• Impeller in Noryl
• Mechanical seal in graphite and ceramics
• Motor shaft manufactured in stainless steel AISI 316L
• 3HP single-phase motors at 230V-50Hz, or three-phase
• 3HP, 4HP or 5,5HP at 230/400V-50Hz motors, all at 3,000 rpm and IP-55 protection
• Possibility of 60Hz upon request
• Connections of suction and return at 3 ½” for Ø 75 mm bush connections
• Bush connections included with the pump

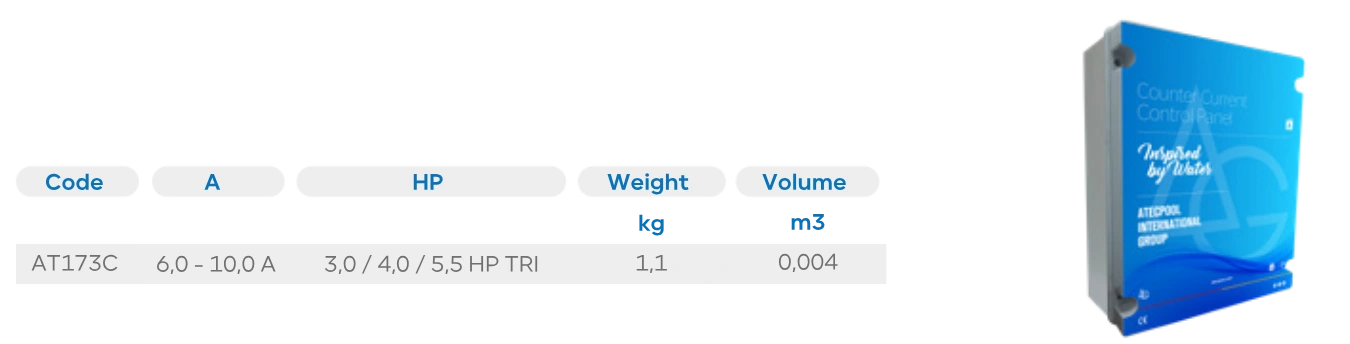

Counter Current Control Panel Leak-proof housing IP-67. With a pneumatic switch for remote control. Pump protection by motor circuit breaker.
