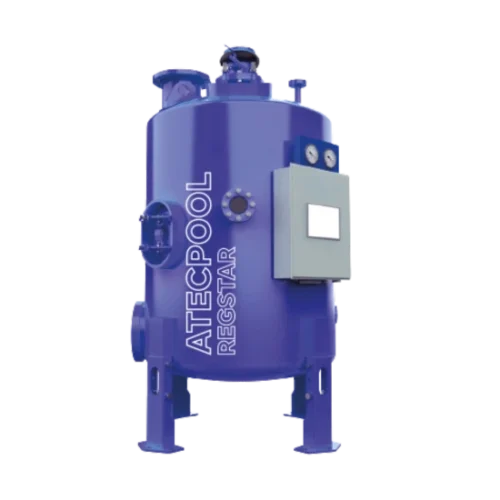

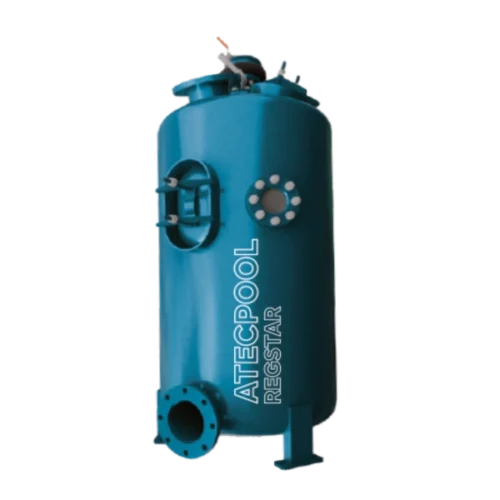

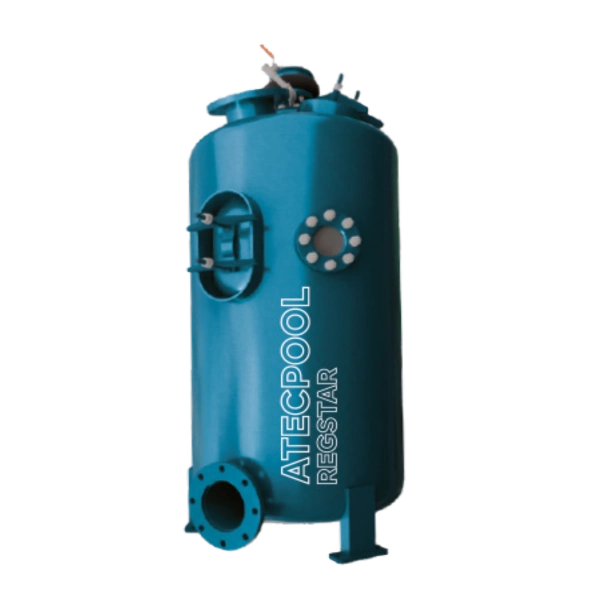

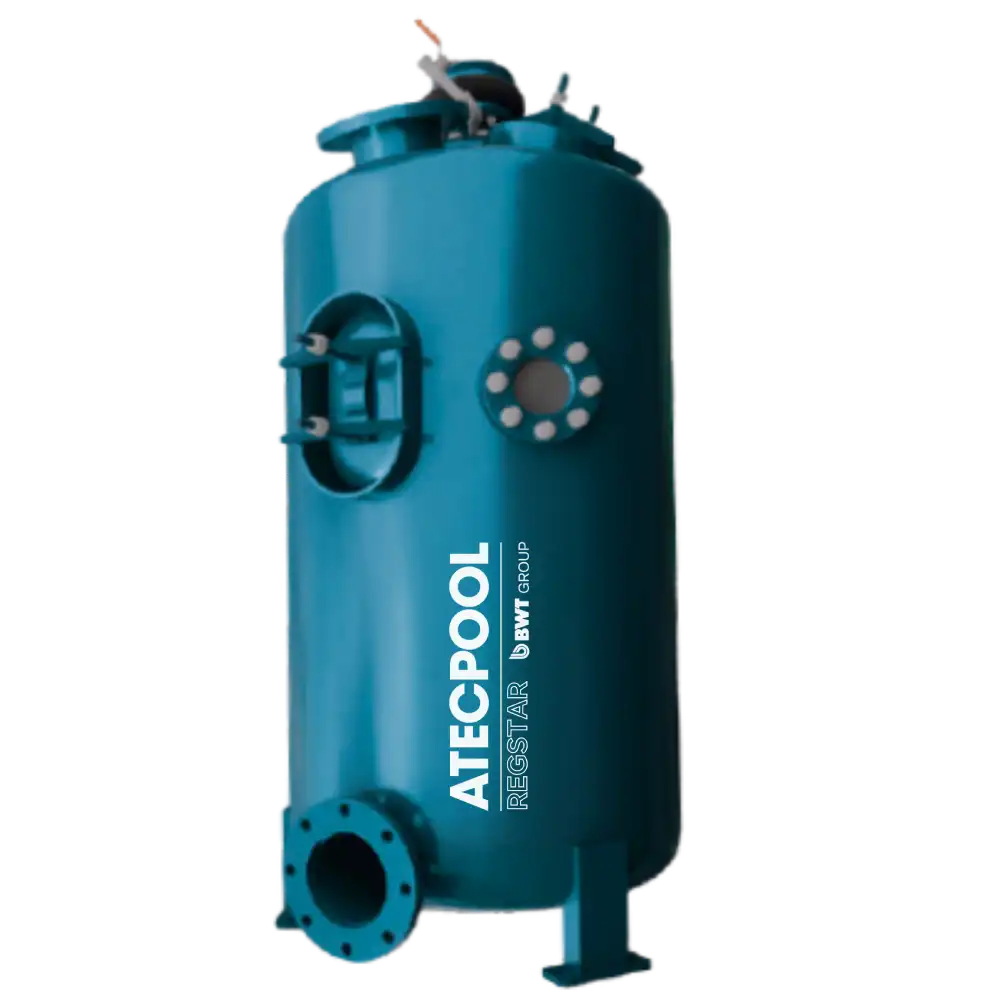

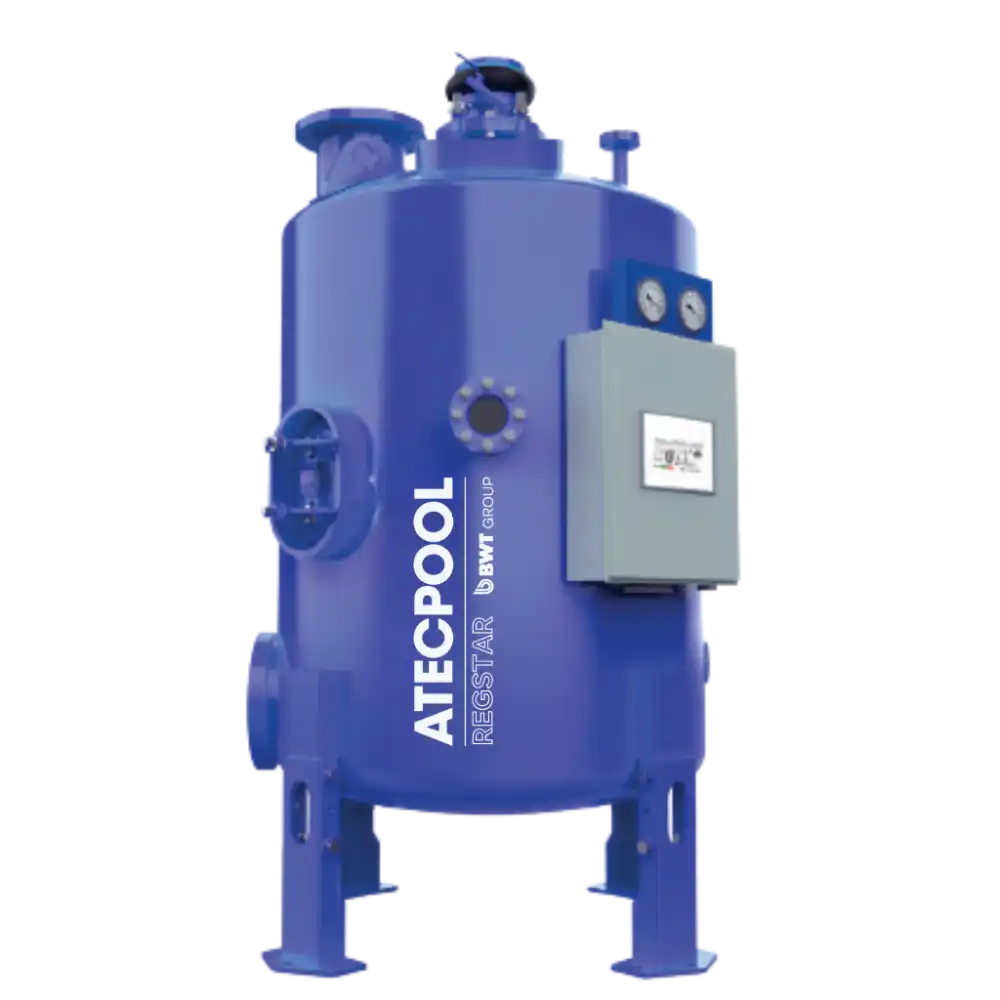

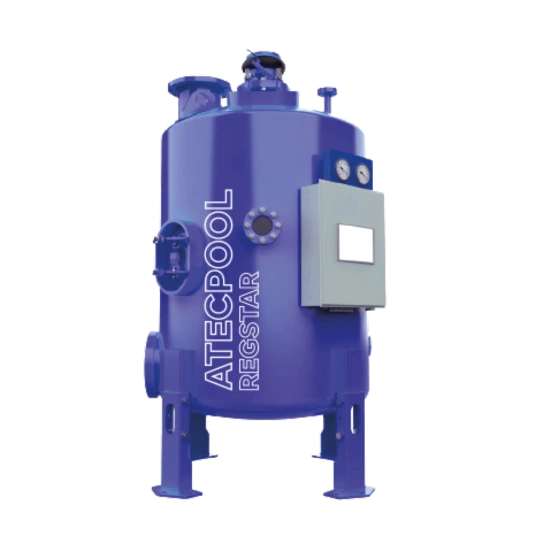

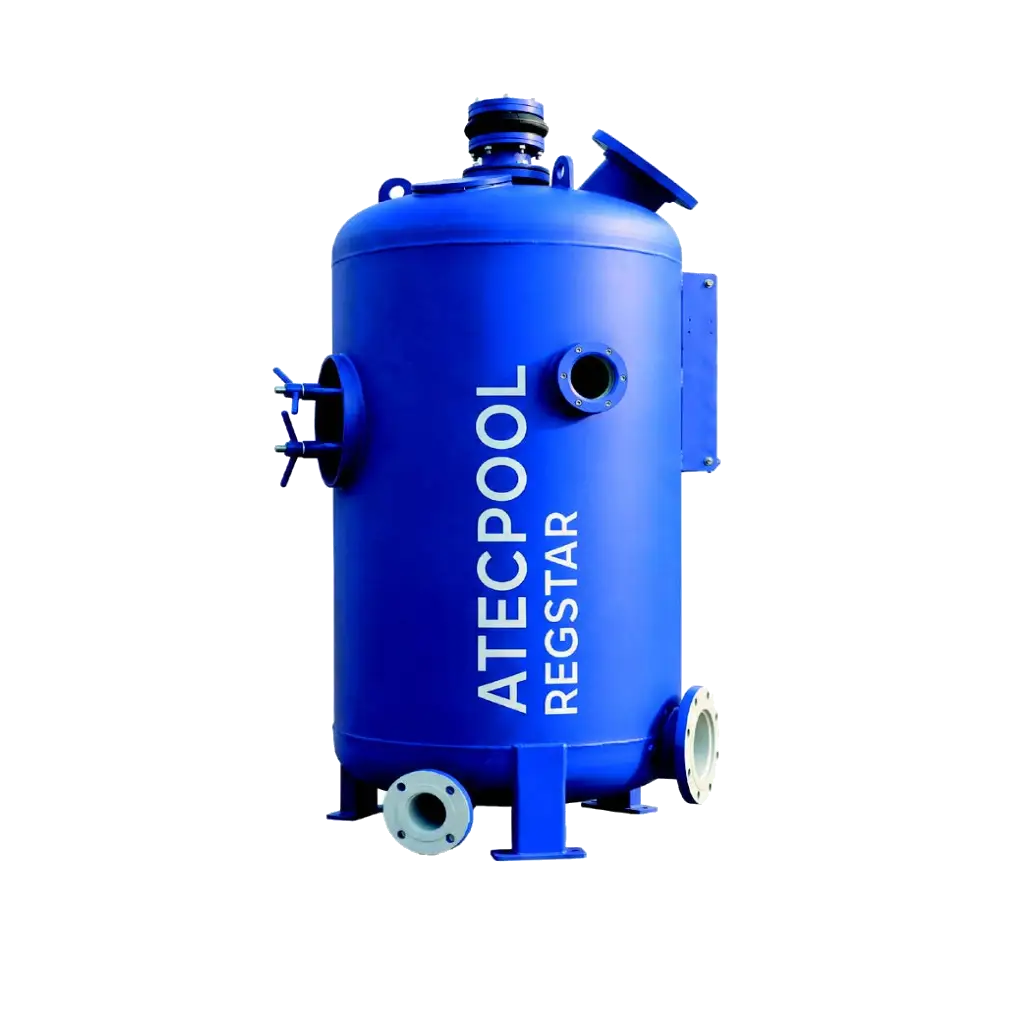

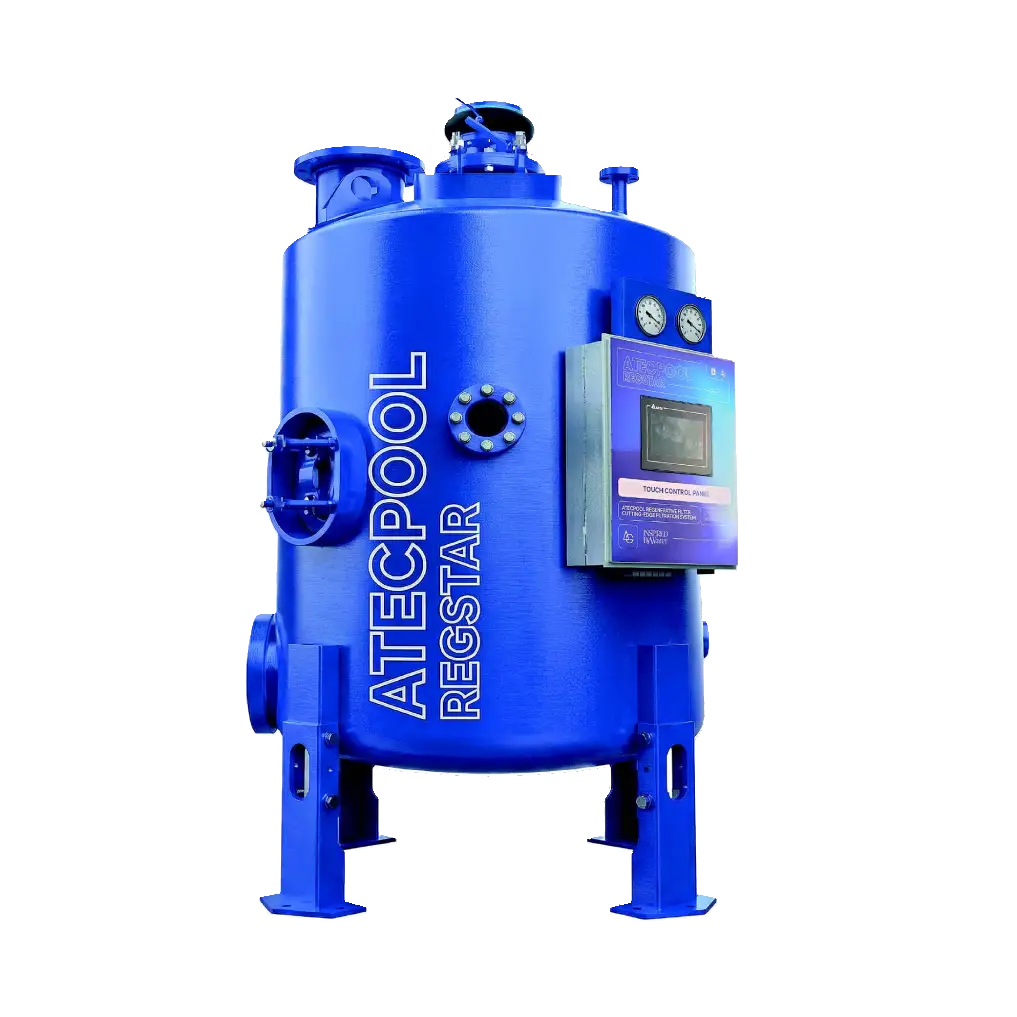

Atecpool ACPM RegStar Filter

Atecpool ACPM RegStar Filter
Atecpool ACPM RegStar Filter - Image 2
New

Regenerative Media Filter

ATECPOOL Regstar Stainless Steel Regenerative media filter is a unique filtration technique, saving up to 96% water, 30% chemicals, 30% energy, and 80% space compared to traditional sand and glass filters.

Eco-friendly and saves up to 96% of water
Regenerative precoat filter enhances water quality, ensuring year-round clarity and improving water safety by eliminating chlorine-resistant pathogens, as recommended by global aquatic standards such as WHO, CDC, and NSW. Regstar significantly reduces operating costs and is the latest filtration method in the aquatic industry.

It’s made of stainless steel with an advanced filtration system using thin perlite layers for microscopic cleaning. Known for superior water purification, ACPM Regstar outperforms sand filters, especially in places like Olympic pools and waterparks. ACPM Regstar Filter brings benefits like minimal water usage, low power needs, a sleek design, and ultra-fine filtration for removing microorganisms. Tailored to various aquatic facilities like water park, hotel and resort, aquarium, condominium, swim school, hydrotherapy, aquatic centre, splash pads, etc..

Category:
Tag:
Brand:
  • Saves up to 30% of chemicals, saves up to 80% of space, saves up to 96% of water, saves up to 30% of energy, and also offers effortless automation operation.
  • Bumping mechanism, pneumatic hammering for agitating filter elements.
  • ACPM Regstar is available in SS304
  • SS316 for swimming pool and water park applications.
  • Fitted with upper manways and large side manways for preventive maintenance.
  • Control and Automation – PLC controller with interactive guidance system. Offers remote monitoring.
  • Large internal sight glass – 150mm sight glass allows for easy monitoring.
  • Down to 1 micron Filtration

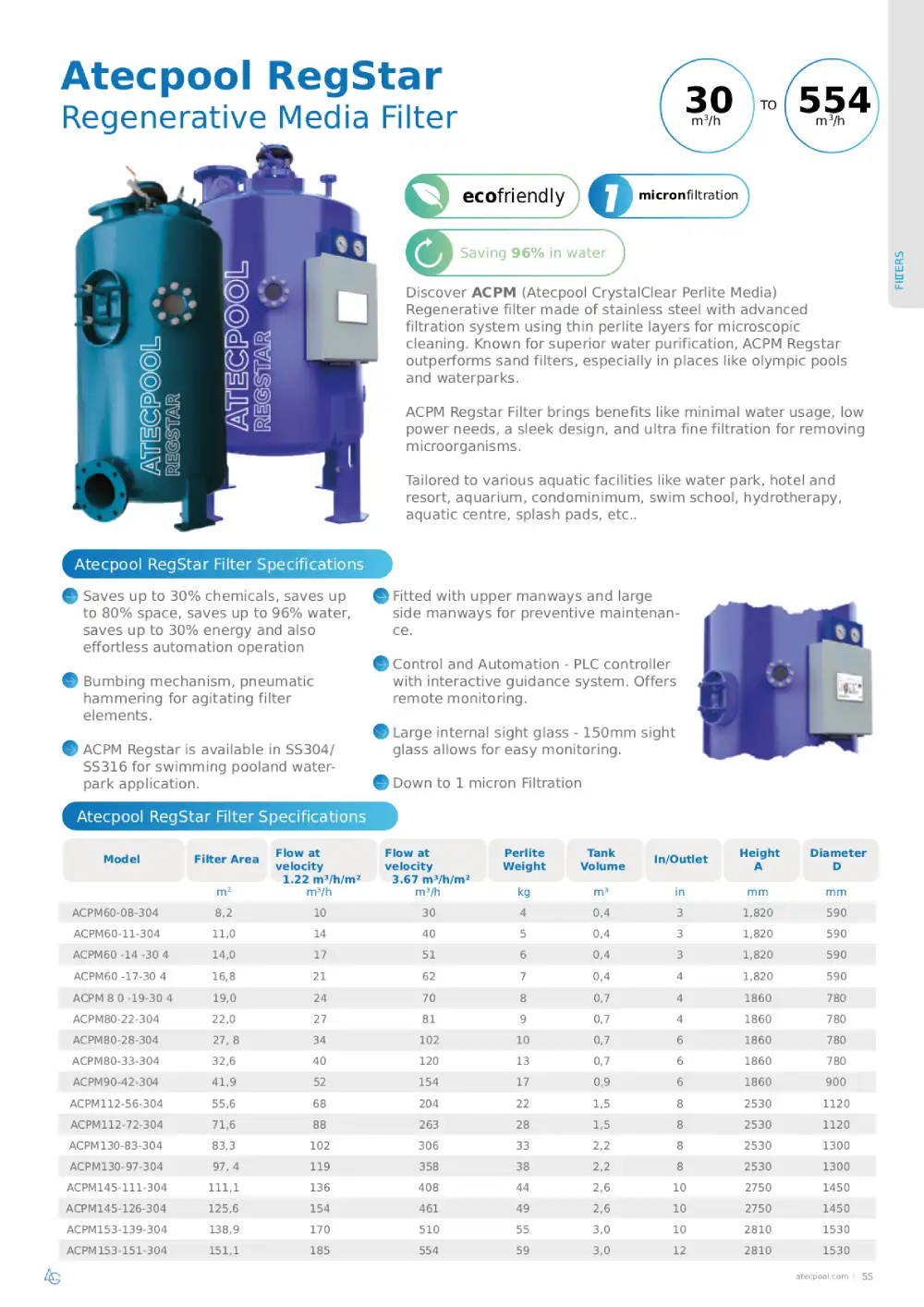

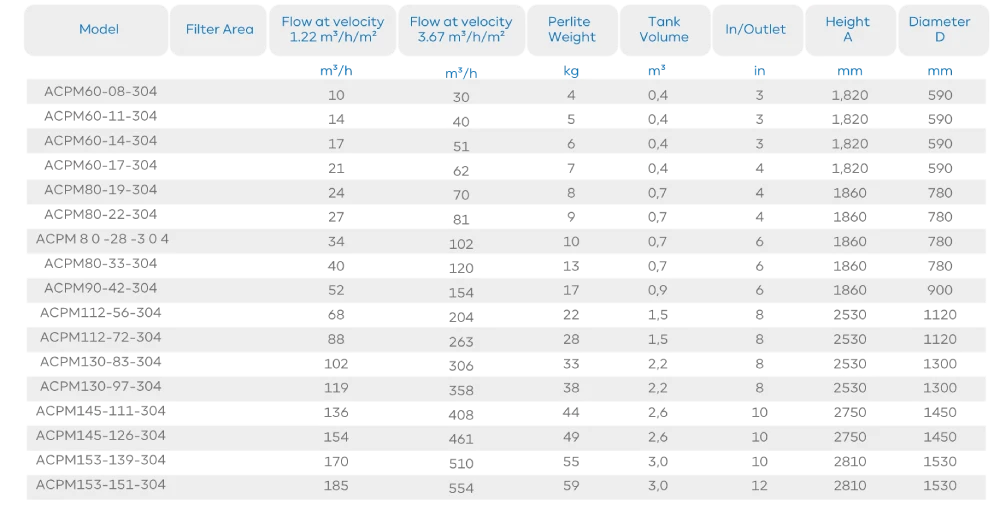

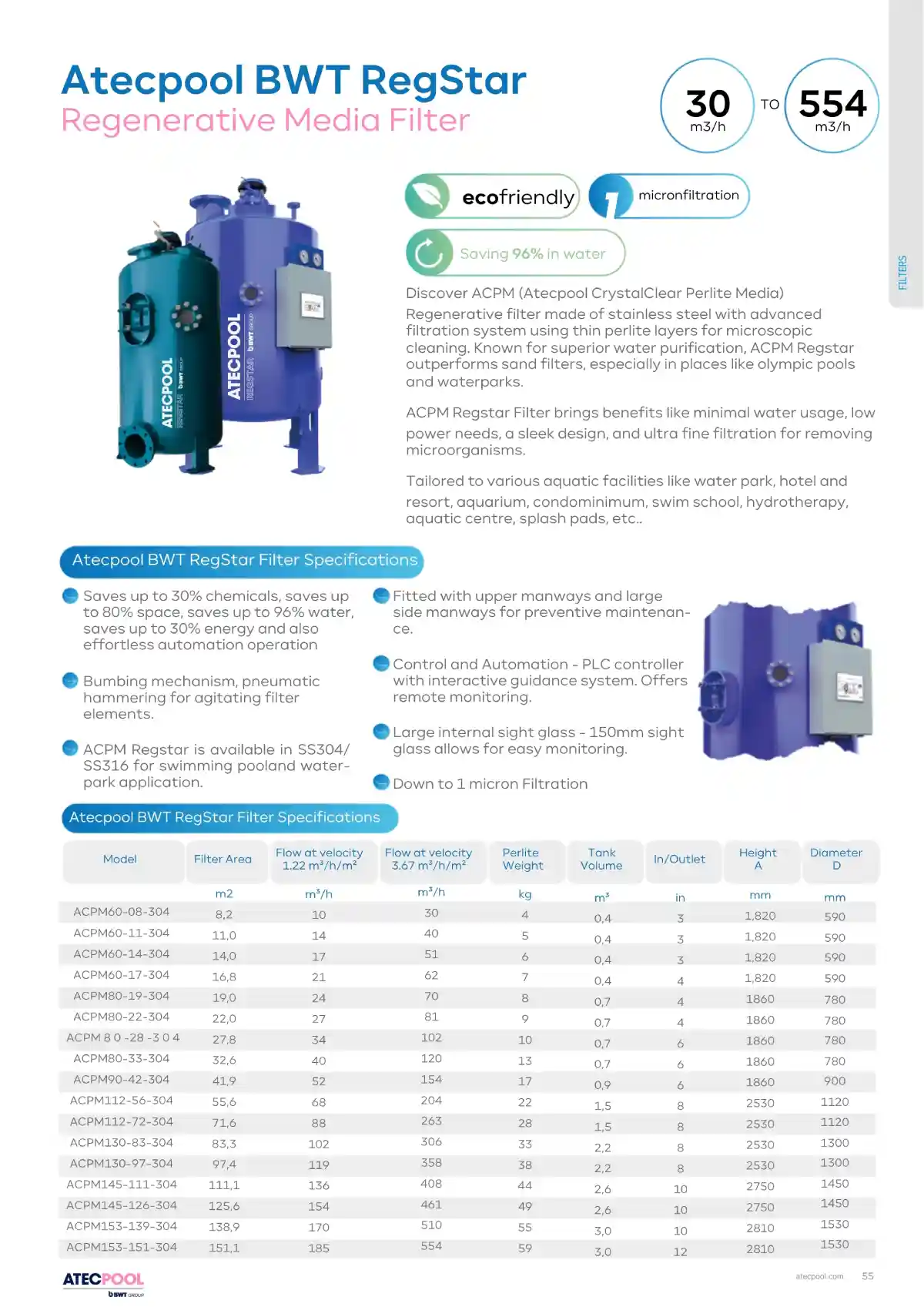

Atecpool RegStar Filter Technical Data

Code Filter
Area		 Min. Flow
@ 1.22 m³/h/m²		 Rec. Max. Flow
@ 3.67 m³/h/m²		 Max. Flow
(Residential)
@ 4.89 m³/h/m²		 Perlite
Weight		 In /
Outlet		 Drain Height
H		 Tank
Diameter D		 Tank
Volume		 Delivery
Weight		 Operating
Weight
m² m³/h m³/h m³/h kg in in mm mm m³ kg kg
ACPM60-08-304/316 9.7 12 35 47 3.8 3 3 1820 590 0.38 270 643
ACPM60-11-304/316 12.2 15 44 59 4.8 3 3 1820 590 0.38 276 649
ACPM60-14-304/316 15.4 19 56 75 6.0 3 3 1820 590 0.38 282 655
ACPM60-17-304/316 16.8 21 61 82 6.6 4 3 1820 590 0.38 288 661
ACPM80-19-304/316 19.3 24 71 94 7.5 4 3 1820 780 0.64 324 1030
ACPM80-22-304/316 21.9 27 80 106 8.5 4 3 1820 780 0.64 330 1036
ACPM80-28-304/316 28.3 35 103 138 11.0 6 3 1820 780 0.64 336 1042
ACPM80-33-304/316 32.6 40 120 159 12.7 6 3 1820 780 0.64 342 1048
ACPM90-42-304/316 42.3 52 155 206 16.5 6 3 1820 890 0.84 424 1347
ACPM112-56-304/316 55.7 68 204 272 21.7 8 4 2510 1150 1.65 980 2654
ACPM112-72-304/316 72.0 88 264 352 28.1 8 4 2510 1150 1.65 1010 2684
ACPM130-83-304/316 83.5 102 306 408 32.6 8 4 2580 1300 2.23 1438 3894
ACPM130-97-304/316 97.5 119 357 476 38.0 10 4 2580 1300 2.23 1462 3924
ACPM145-111-304/316 111.4 136 408 544 43.5 10 4 2590 1450 2.62 1529 4409
ACPM145-126-304/316 126.1 154 462 616 49.2 10 4 2590 1450 2.62 1559 4439
ACPM153-139-304/316 139.4 170 511 681 54.4 10 4 2600 1530 3.06 1825 5195
ACPM153-151-304/316 151.2 185 554 739 59.0 12 4 2600 1530 3.06 1850 5220
Code:
ACPMXXX-XXX-304 — RegStar Stainless Steel AISI 304 Filter
ACPMXXX-XXX-316 — RegStar Stainless Steel AISI 316 Filter

Atecpool Control Panel

FOR REGSTAR REGENERATIVE FILTER(12 m3/h TO 739 m3/h)

Features:

  • 7” 16-bit TFT touch screen
  • 800 × 480 resolution for crisp visuals
  • Powered by Cortex-A8 800 MHz CPU
  • 256MB RAM / 256MB ROM memory
  • IP65-rated front panel in durable ABS enclosure
  • Built-in Ethernet port (1x)
  • Supports Modbus/TCP, FTP, VNC, email, and web monitoring
  • 220-240V AC (50/60Hz) enclosure power supply
  • 24VDC output for SMC solenoid valves
  • Manual control of all actuators (including pumps)
  • Configurable Precoat Pump function
  • Adjustable speed control for filter and precoat pumps
  • Digital pressure display with real-time differential pressure monitoring
  • Automatic error detection and alerts
  • Interactive on-screen maintenance guidance
  • Data logging for system performance tracking
  • Remote monitoring and operation via VNC or web browser
  • Email client for event notifications and alerts
  • View/control access via LAN or Internet (browser-based interface)

Download Catalogue

Download Manual

Download Certificate 01

Download Certificate 02

Download Certificate 03

Download Warranty Letter
